产品介绍

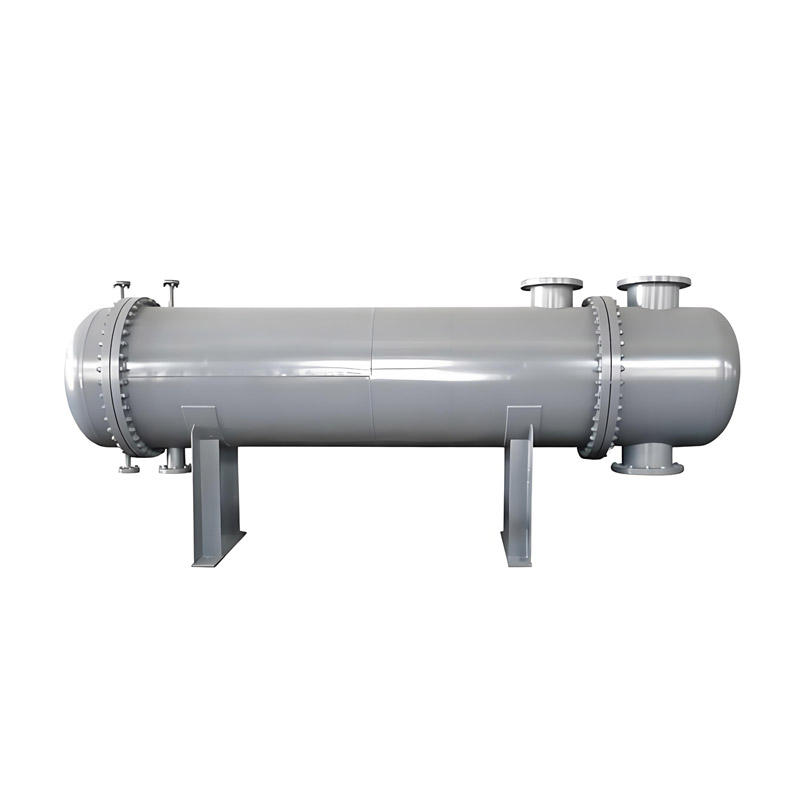

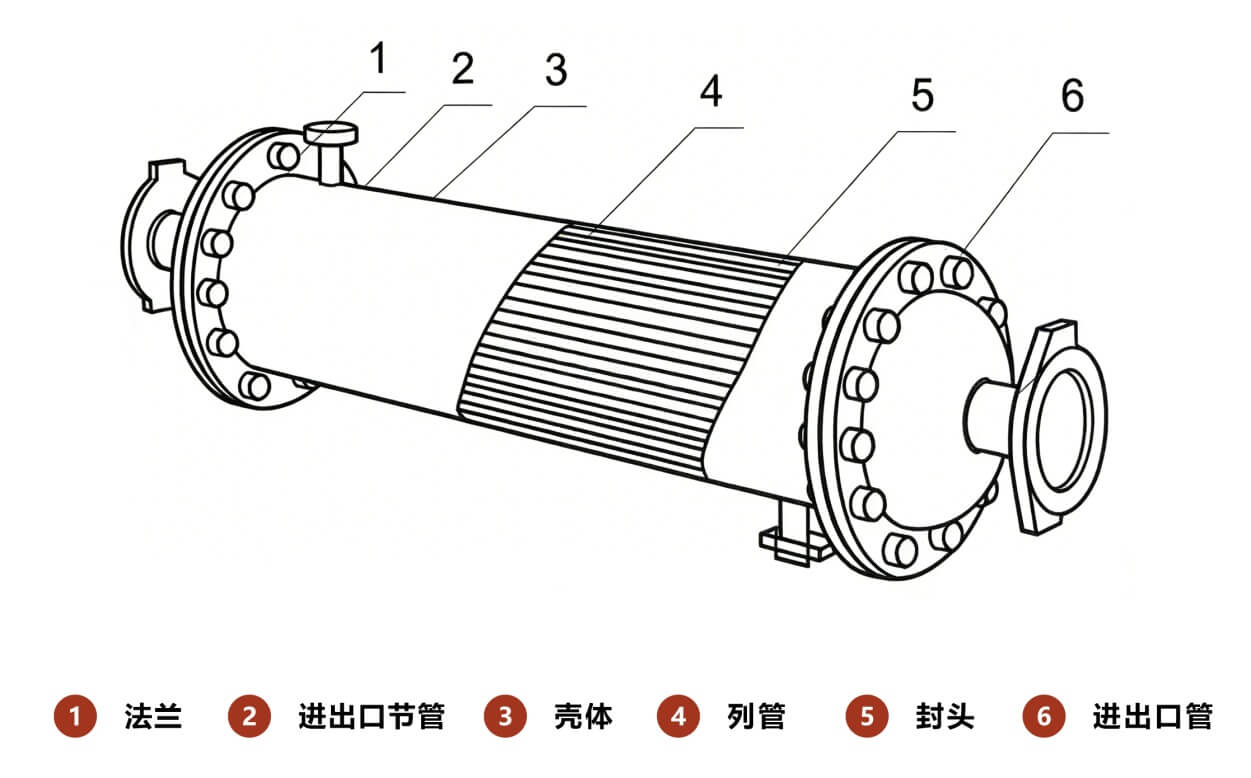

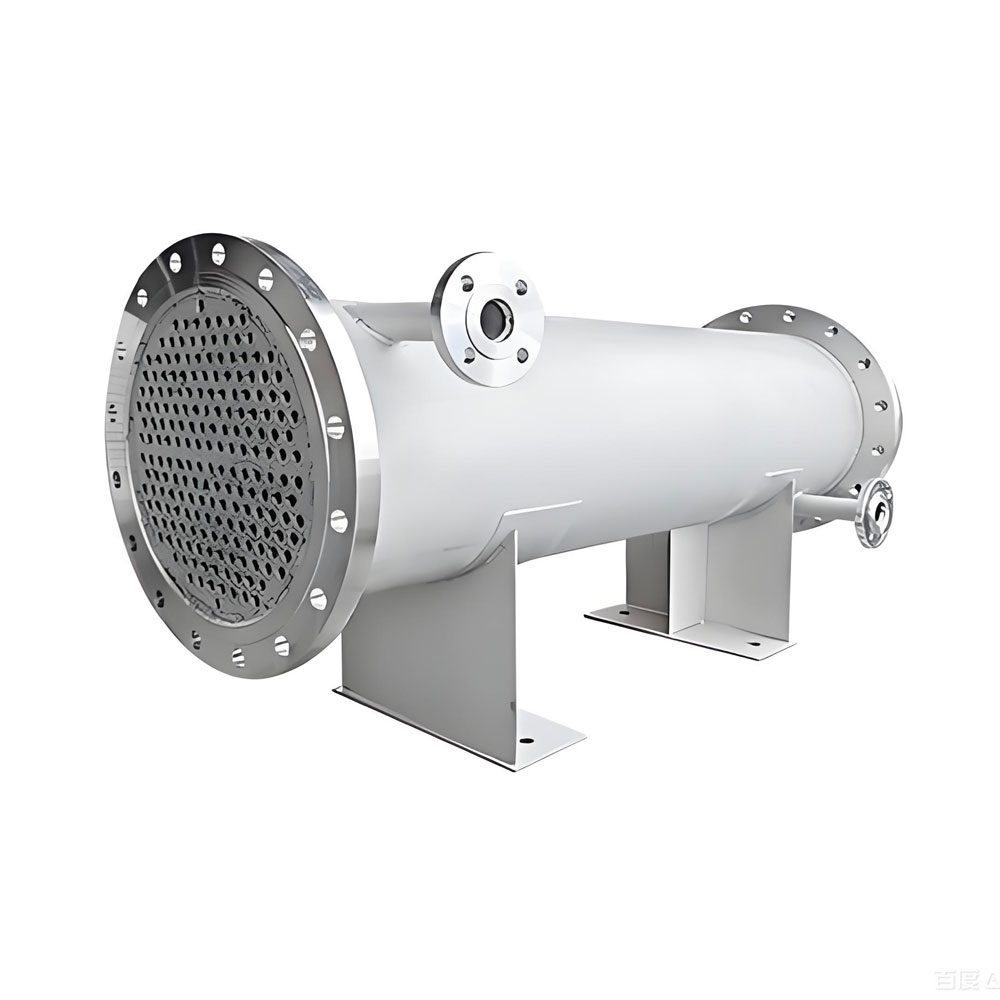

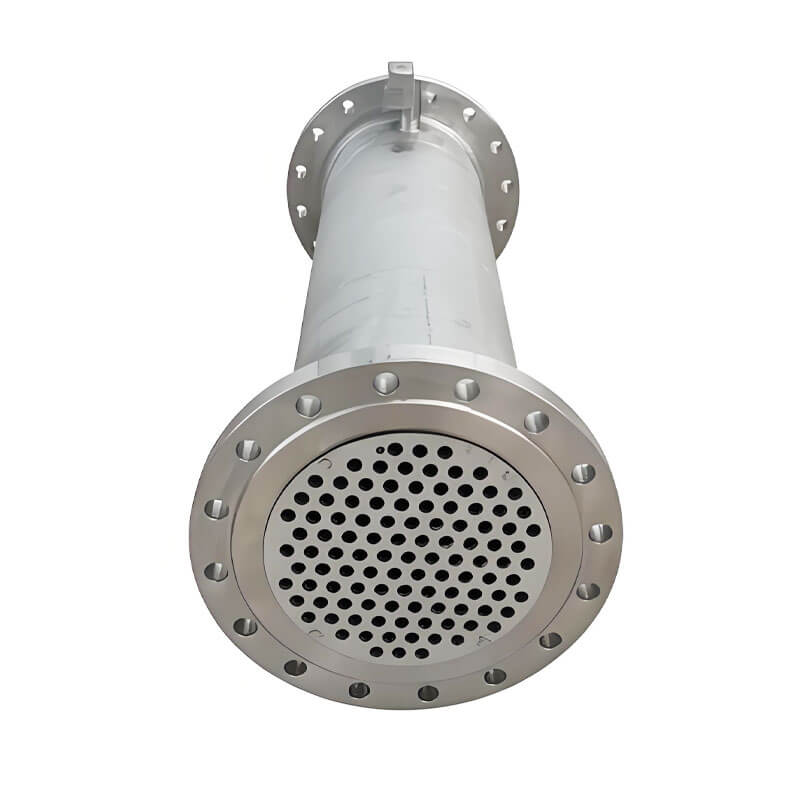

我厂生产的列管式冷凝器，按材质分为碳钢列管式冷凝器、不锈钢列管式冷凝器和碳钢与不锈钢混合列管式冷凝三种，按形式分为固定管板式、浮头式、U 型管式换热器，按结构分为单管程、双管程和多管程。传热面积 0.5-500m²，可根据用户需要定制。

主要技术参数

DN	N	n1)		中心排管数		管程流通面积m²			A²) m²
		d				d x δ₁			L=3m		L=4.5m		L=6m		L=9m
		19	25	19	25	19x2	25x2	25x2.5	19	25	19	25	19	25	19	25
325	2	60	32	7	5	0.0053	0.0055	0.0050	10.5	7.4	15.8	11.1	---	---	---	---
325	4	52	28	6	4	0.0023	0.0024	0.0022	9.1	6.4	13.7	9.7	---	---	---	---
426 400	2	120	74	8	7	0.0106	0.0126	0.0116	20.9	16.9	31.6	25.6	42.3	34.4	---	---
426 400	4	108	68	9	6	0.0048	0.0059	0.0053	18.8	15.6	28.4	23.6	38.1	31.6	---	---
500	2	206	124	11	8	0.0182	0.0215	0.0194	35.7	28.3	54.1	42.8	72.5	57.4	---	---
500	4	192	116	10	9	0.0085	0.0100	0.0091	33.2	26.4	50.4	40.1	67.6	53.7	---	---
600	2	324	198	14	11	0.0286	0.0343	0.0311	55.8	44.9	84.8	68.2	113.9	91.5	---	---
	4	308	188	14	10	0.0136	0.0163	0.0148	53.1	42.6	80.7	64.8	108.2	86.9	---	---
	6	284	158	14	10	0.0083	0.0091	0.0083	48.9	35.8	74.4	54.4	99.8	73.1	---	---
700	2	468	268	16	13	0.0414	0.0464	0.0421	80.4	60.6	122.2	92.1	164.1	123.7	---	---
	4	448	256	17	12	0.0198	0.0222	0.0201	76.9	57.8	117.0	87.9	157.1	118.1	---	---
	6	382	224	15	10	0.0112	0.0129	0.0116	65.6	50.6	99.8	76.9	133.9	103.4	---	---
800	2	610	366	19	15	0.0539	0.0634	0.0575	---	---	158.9	125.4	213.5	168.5	---	---
	4	588	352	18	14	0.0260	0.0305	0.0276	---	---	153.2	120.6	205.8	162.1	---	---
	6	518	316	16	14	0.0152	0.0182	0.0165	---	---	134.9	108.3	181.3	145.5	---	---
900	2	800	472	22	17	0.0707	0.0817	0.0741	---	---	207.6	161.2	279.2	216.8	---	---
	4	776	456	21	16	0.0343	0.0395	0.0353	---	---	201.4	155.7	270.8	209.4	---	---
	6	720	426	21	16	0.0212	0.0246	0.0223	---	---	186.9	145.5	251.3	195.6	---	---
1000	2	1006	606	24	19	0.0890	0.105	0.0952	---	---	260.6	206.6	350.6	277.9	---	---
	4	980	588	23	18	0.0433	0.0509	0.0462	---	---	253.9	200.4	341.6	269.7	---	---
	6	892	564	21	18	0.0262	0.0326	0.0295	---	---	231.1	192.2	311.0	258.7	---	---
1100	2	1240	736	27	21	0.1100	0.1270	0.1160	---	---	320.3	250.2	431.3	336.8	---	---
	4	1212	716	26	20	0.0536	0.0620	0.0562	---	---	313.1	243.4	421.6	327.7	---	---
	6	1120	692	24	20	0.0329	0.0399	0.0362	---	---	289.3	235.2	389.6	316.7	---	---
1100	2	1452	880	28	22	0.1290	0.1520	0.1380	---	---	374.4	298.6	504.3	402.2	764.2	609.4
	4	1424	860	28	22	0.0629	0.0745	0.0675	---	---	367.2	291.8	494.6	393.1	749.5	595.6
	6	1348	828	27	21	0.0396	0.0478	0.0434	---	---	347.6	280.9	468.2	378.4	709.5	573.4
